Description
Features

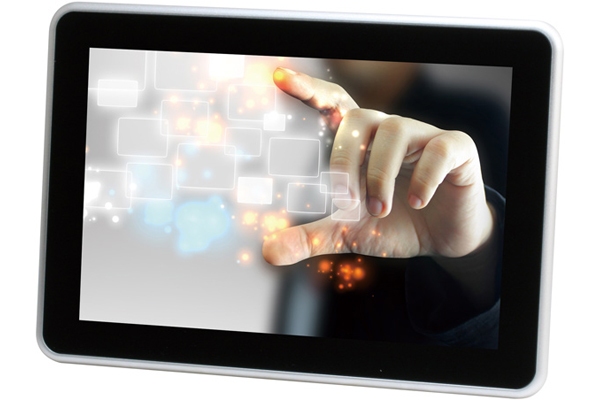

- 10.1″ WXGA (1280 x 800) TFT LCD Display
- IP65 Aluminum Front Bezel
- P-CAP Multi-Touch Screen (2-point)
- VESA 75/ Panel Mount/ Stand
Specifications
| SYSTEM | |
| INPUT SIGNAL | VGA, DVI-D |
| ON SCREEN DISPLAY CONTROL | Auto, Menu, Up, Down, LCD On/Off |

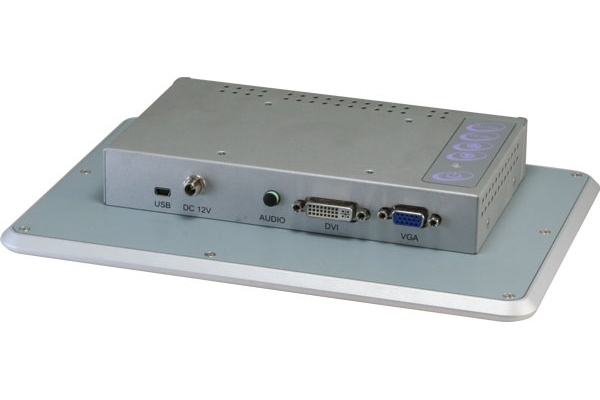

| I/O PORT | DB-15: VGA x 1 DVI-D x 1 Mini USB x 1 Power input x 1 |
| OS SUPPORT | Windows® XP 32 bit Windows® 7 32/64 bit Windows® 8 32/64 bit Linux Ubuntu 12.04 |
| MECHANICAL | |
| CONSTRUCTION | IP65 aluminum front bezel & SGCC chassis |
| MOUNTING | VESA75/ Panel mount/ Stand |
| DIMENSION | 9.97″ x 6.72″ x 1.57″ (265.96mm x 183.56mm x 40mm) |
| CARTON DIMENSION | 13.58″ x 7.87″ x 9.65″ (345mm x 200mm x 245mm) |
| GROSS WEIGHT | 4.4 lb (2.6 kg) |
| NET WEIGHT | 2.64 lb (1.4 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 32°F ~ 113°F (0°C ~ 45°C ) w/o airflow 32°F ~ 122°F (0°C ~ 50°C ) w/ airflow |
| STORAGE TEMPERATURE | 14°F ~ 140°F (-10°C ~ 60°C ) |
| STORAGE HUMIDITY | 5%~90% @40°C, non-condensing |
| VIBRATION | 1 Grms/ 5 ~ 500Hz/ operation – with HDD |
| SHOCK | 15 G peak acceleration (11 msec. duration) |
| EMC | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC 12V with Lockable Power adapter |
| LCD | |
| DISPLAY TYPE | 10.1” TFT LCD |
| MAX. RESOLUTION | 1280 x 800 |
| MAX. COLORS | 262K colors |
| LUMINANCE | 250 cd/m² |
| VIEWING ANGLE | 160°(H)/ 160°(V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | 20000 |
| TOUCHSCREEN | |
| TYPE | Projective capacitive multi-touch (2-point) |
| LIGHT TRANSMISSION | 86% |
| LIFE TIME | 10 million activations |
