Description
Features
-

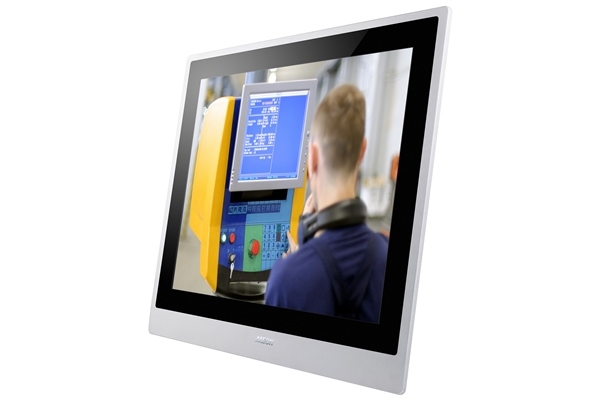

- 12.1” WXGA (1024 x 768) TFT LCD Display
- Intel® N2807/J1900 Processor
- P-CAP or Resistive Touch Support
- Aluminum Design
- IP65 Compliant Front Bezel
- Fanless Operation
Note:*RAM not included *Panel Mount Kit (Optional)
Specifications12.1” Modular HMI Panel PC
| SYSTEM | |
| PROCESSOR | Intel® N2807 processor, 1.58 GHz Intel® J1900 processor, 2 GHz |
| SYSTEM MEMORY | 204-pin DDR3L 1333MHz SODIMM x 1, up to 8 GB, (J1900) 204-pin DDR3L 1333MHz SODIMM x 1, up to 4 GB, (N2807) |
| LCD/CRT CONTROLLER | Integrated in processor |
| ETHERNET | Intel® I211, 10/100/1000Base-TX x 2 |

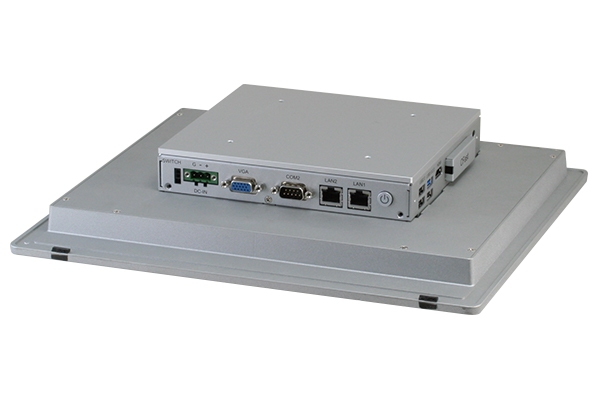

| I/O PORT | USB 2.0 type A x 3 USB 3.0 type A x 1 SMA Antenna hole x 1 HDMI x 1 CFast x 1 DB-9 Type RS-232/422/485 x 1 RJ-45 x 2 for 10/100/1000 base-T DB-15 x 1 for VGA 3-pin terminal block x1 for 9~30 Vdc power input LED Power on/off switch x1 |
| STORAGE DISK DRIVE | CFast™ x 1, 2.5″ SATA HDD bay x 1 |
| EXPANSION SLOT | Mini card x 2 (Testing Compalibility Only) SIM card x 2 PCIE X 1 connector (AAEON PIN Define) |
| OS SUPPORT | Windows® 7, Windows® 8, Windows® 10, Linux kernel 2.6.x or above |
| MECHANICAL | |
| CONSTRUCTION | Aluminum design (IP65 Front Frame) |
| MOUNTING | Wall /VESA Mount/Desktop (Optional panel mount kits) |
| DIMENSION | 329 x 288 x 56 mm |
| GROSS WEIGHT | 5.0 kg |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -10°C ~ 55°C (J1900), -10°C ~ 60°C (N2807) with 0.5 m/s airflow ( CF & HDD ) |
| STORAGE TEMPERATURE | -4°F ~ 158°F (-20°C ~ 70°C) |
| STORAGE HUMIDITY | 90% @40°C; non-condensing |
| ANTI-VIBRATION | 1 Grms / 5~ 500Hz / operation – with HDD |
| ANTI-SHOCK | 15G peak acceleration (11 msec. duration) – with HDD |
| CERTIFICATION | CE/FCC class A |
| POWER SUPPLY | |
| DC INPUT | DC 9 (min) ~ 30 (max) V w/3-pin terminal block, ATX Power function |
| LCD | |
| DISPLAY TYPE | 12.1″ TFT-LCD, LED |
| MAX. RESOLUTION | 1024(H) x 768(V) |
| MAX. COLORS | 16.2M colors |
| LUMINANCE | 500 cd/m² |
| VIEWING ANGLE | 160° (H), 160° (V) |
| BACK LIGHT | LED |
| BACK LIGHT MTBF (HOURS) | — |
| TOUCHSCREEN | |
| TYPE | P-CAP/ 5-wire resistive |
| LIGHT TRANSMISSION | P-CAP (90% ± 3%), 5-wire Resistive (80% ± 3%) |
