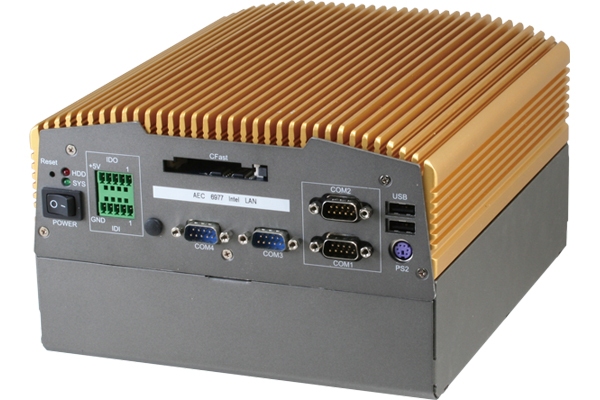

Description
Features
- 2nd Generation Intel® Core™ i Processor
- Dual-Channel SODIMM DDR3 1066/1333/1600 Memory, Up to 16 GB (Supports DDR3L in Intel® Core™ i7/i5)
- Intel® Integrated Graphics Engine Supports Dual View by VGA, DVI, HDMI, LVDS
- COM x 6 (2.5KV Isolation x 2), 2.5KV solated DIO x 1
- Mini-Card Slot x 2, CFast™ x 1
- PCI-Express﹝x4﹞ x 2 or PCI x 2 or PCI x 1 + PCI-Express﹝x4﹞ x 1
- TPM x 1 (Optional)
- Wide Temperature Support with Intel® Core™ i7-2610UE Processor
- AAEON Hi-Safe & Hi-Manager Support
Specifications
| SYSTEM | |
| CPU | Intel® Core™ i7-2610UE, 1.5 GHz Intel® Core™ i3-2310E, 2.1 GHz |
| CHIPSET | Intel® QM67 |
| SYSTEM MEMORY | DDR3 1066/1333 MHz SODIMM slot x 2, up to 16 GB |
| DISPLAY INTERFACE | HDMI, DVI-D, VGA |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® 82579LM, 10/100/1000Base-TX x 1 REALTEK. RTL8111E-VL-CG, 10/100/1000Base-TX x 1 |
| I/O | RS-232/422/485 x 1 isolation RS-232 x 1 isolation RS-232 x 4 USB 2.0 x 6 HDMI x1 DVI-D x 1 VGA x 1 LAN x 2 Programmable 8-bit digital input / output isolation Mic-in x 1 Line-in x 1 Line-out x 1 PS/2 x 1 Grounding x 1 CFast™ slot x 1 Power switch x 1 Rese |
| EXPANSION | Full-size Mini-Card x 2 PCIe[x4] x 2 (SKU A5) PCI x 2 (SKU A2, A4) PCIe[x4] x 1 & PCI x 1 (SKU A1, A3) |
| INDICATOR | Power LED HDD active LED |
| OS SUPPORT | Windows® 7, Windows® XP, Windows® XP Embedded, Linux Fedora 15-2.6.38.6 Support |
