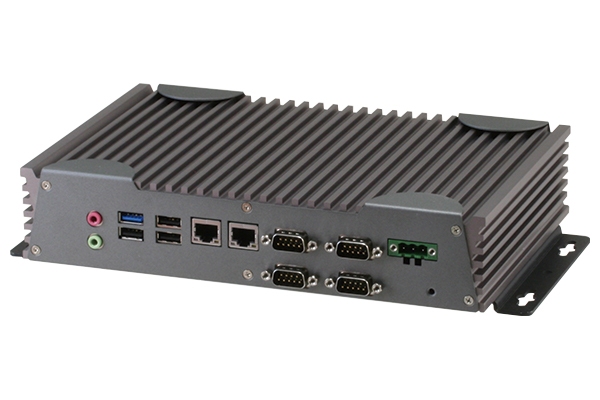

Description
Features
- Intel® Atom™ E3845, 1.91 GHz 4C4T Processor, Optional for J1900, N2807
- 2.5” Drive Bay x 2
- Support OVP/UVP/Reverse Protection, On/Off Delay and Battery Protection
- Fanless Operation
- Mini PCIe x 3 and SIM x 3
- Onboard CANBUS/ GPS
- Support DC +12V or DC +24V Vehicle Power and ACC Function
Specifications
| SYSTEM | |
| CPU | Intel® Atom™ E3845, 1.91 GHz |
| CHIPSET | Intel® System on Chip |
| SYSTEM MEMORY | DDR3L 1066/1333 SODIMM slot x 1, up to 8 GB |
| DISPLAY INTERFACE | HDMI, VGA |
| STORAGE DEVICE | CFast™ slot x 1, 2.5” HDD bay x 2 |
| ETHERNET | Intel® I211, 10/100/1000Base-TX x 2 |
| I/O | RS-232/422/485 x 2 isolated RS-232 x 2 USB 3.0 x 1 USB 2.0 x 3 HDMI x 1 VGA x 1 LAN x 2 CAN bus x 1 Mic-in x 1 Line-out x 1 CFast™ slot x 1 Antenna hole x 4 Power on/off LED button x 1 Power input |
| EXPANSION | Full-size Mini-Card x 3 with SIM slot x 3 |
| INDICATOR | Power LED on power button HDD active LED |
| OS SUPPORT | Windows® 10, Windows® 8.1, Windows® 7, Linux Fedora |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9-30V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 10.55” x 6.48” x 2.00” (268mm x 164.6mm x 51mm) |
| GROSS WEIGHT | — |
| NET WEIGHT | — |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -15°C ~ 65°C (according to IEC60068-2, with 0.5m/s AirFlow) |
| STORAGE TEMPERATURE | -40°C ~ 80°C |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5~ 500Hz/ operation – Cfast™ |
| CERTIFICATION | CE/FCC class A, E13, ISO7637 |
